Casambi Magnetic Wall Washer Light PGT

Magnetic Wall Washer Polarized Light PGT Series with Multi Sizes For Option.
Built-in casambi module, can be controlled the brightness dimming and CCT dimming.

Inquiry

Product Details

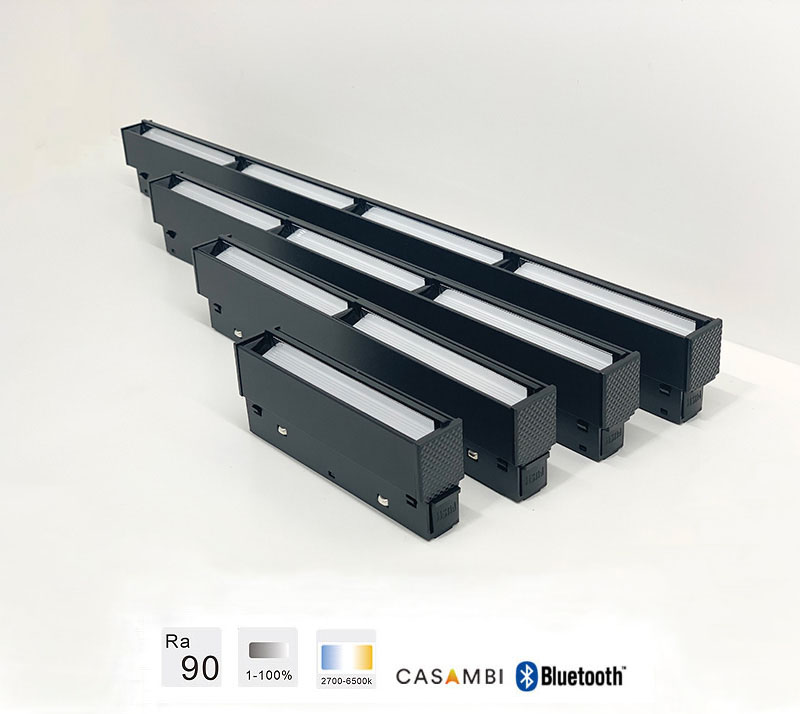

Magnetic Wall Washer Light -PGT Series

PRODUCT SPECIFICATION

Model No.	PGT
Control System	Casambi Bluetooth App

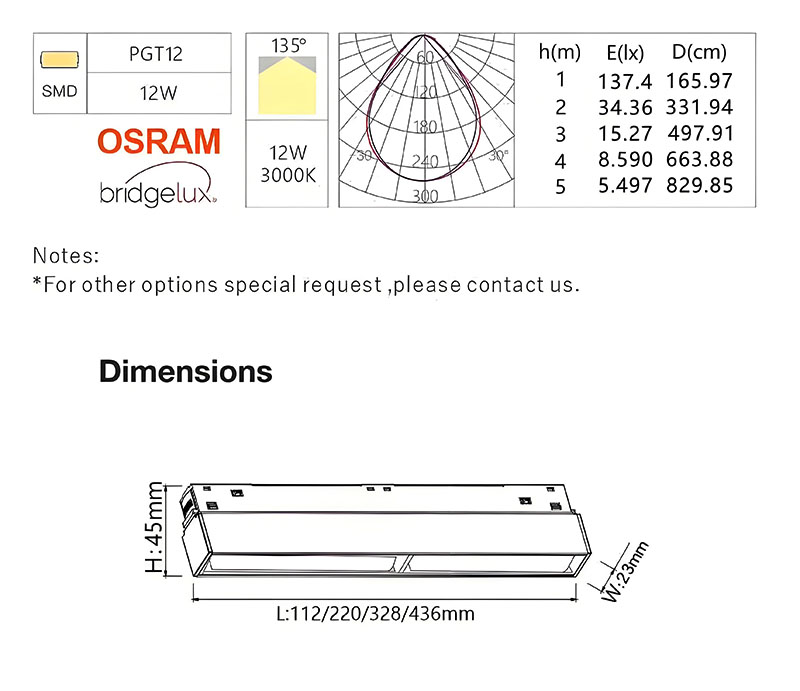

Dimension/MM	L112W23H45/ L220W23H45/ L328W23H45/ L436W23H45
Material	Aluminum and plastic
Finish	Sandy white/black
Led Source	COB
Power	6W /12W/ 18W/ 24W
Lumen output	90LM/W
Flux	540LM / 1080LM/ 1600LM / 2100LM
Driver	48V DC built-in
Input voltage	48V DC
CCT	3000/4000/6500/2700~6500(tunable)
CRI	Ra>90
Beam Angle	/
Dimming Type	Casambi
Lens	PMMA

CASAMBI MOBILE PHONE APP

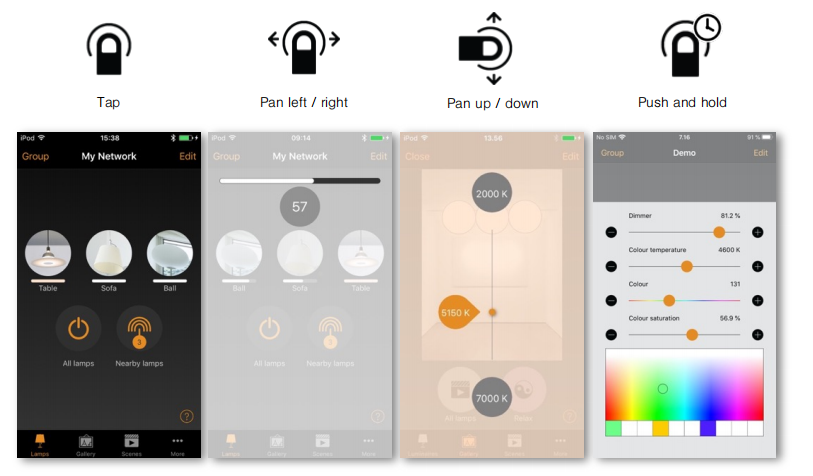

Basic Gestures

The basic gestures used to control the luminaires are:

Tap the luminaire icon to turn the luminaire on or off.

Pan left or right on the luminaire icon to adjust the dimming level. The app remembers the set level so, if you turn the luminaire on, off and on again using the tap gesture, it will return to that level. Pan up or down on the luminaire icon to adjust the colour temperature of a tuneable white luminaire. Push and hold the luminaire icon to open the main adjustable parameters.

For colour changing luminaires, you can set the desired colour. It is possible to save your favourite colours to the palette. Set the colour and then select and hold an empty palette space to save it. The colour palette cannot be reset but saved colours can be overridden with new colours.

If your luminaire supports more than one channel, you can adjust the channels separately.

Tip: Use the same gestures on the All luminaires icon to control all your luminaires simultaneously or use the Nearby luminaires icon to only control those devices within range of your mobile device.
